Product Details

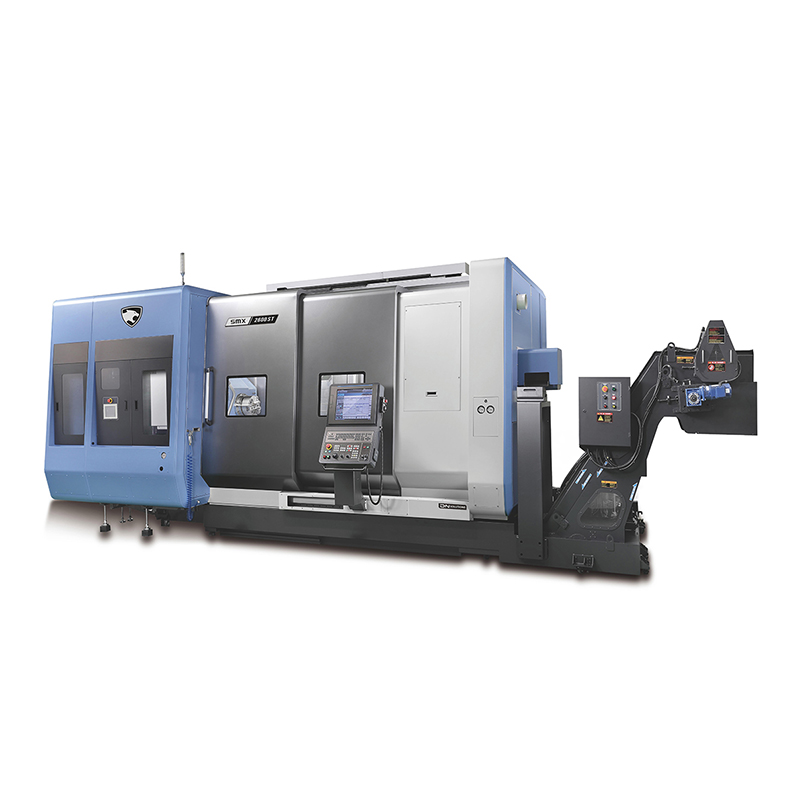

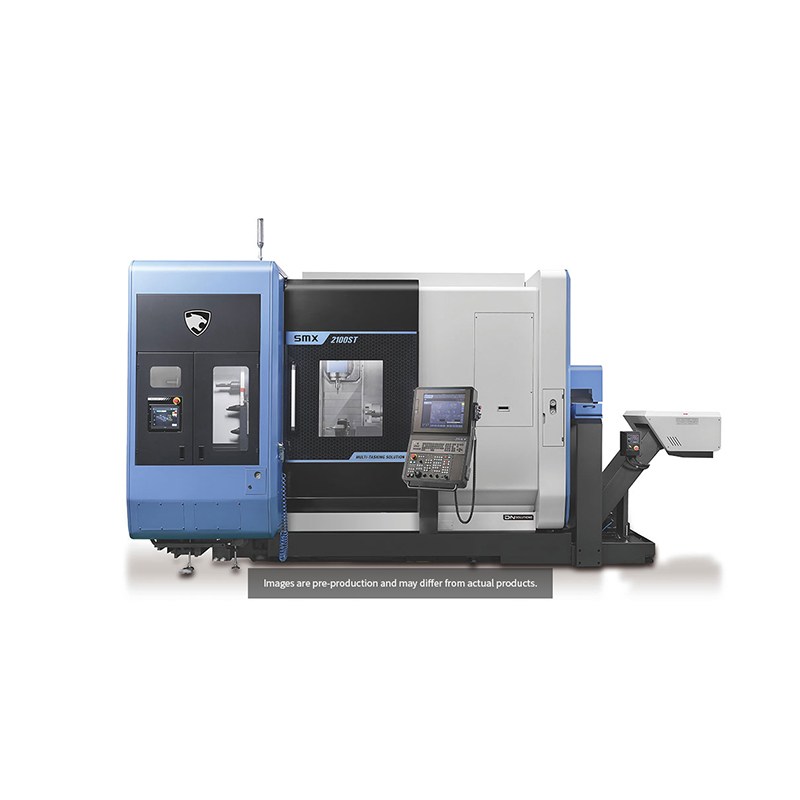

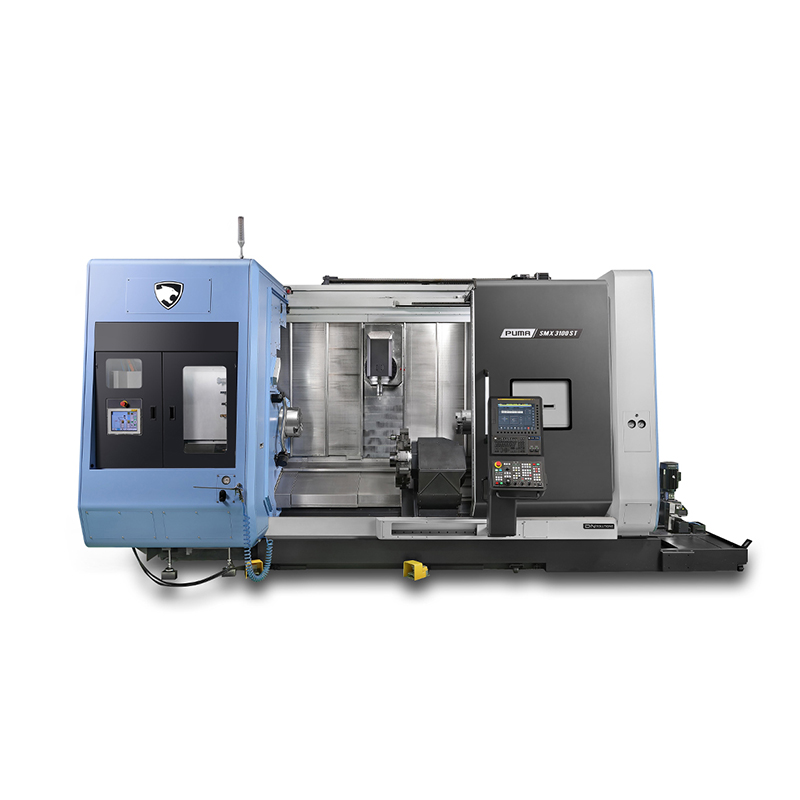

SMX series Powerful multi-tasking turning center
The SMX series has a total of 9 axes, suitable for a wide range of parts processing. It has a larger chuck size than the PUMA MX, but has the same high performance and flexibility.
Powerful multi-tasking capabilities to improve productivity.
Combined with left and right spindles, B-axis milling function and lower turret, it has higher multi-tasking capabilities and is suitable for processing more complex parts.
Orthogonal Y-axis structure can maximize the processing space bit high-rigidity servo turret with powerful cutting performance.
Excellent control capability for higher precision
The 0.0001 degree precision control function of the B-axis and C-axis enables high-precision machining
The thermal displacement of the spindle and feed axis is minimized through optimized cooling solutions and intelligent thermal compensation, which has high precision even in long-term machining.
Simple and convenient functions
Front-mounted tool magazine and convenient ATC operation panel for easy maintenance and repair of tools.
Height-adjustable and movable rotating operation panel.
Humanized processing guide function.
Can be used with a tool magazine and multi-pallet system that can accommodate up to 120 tools independently, allowing you to achieve unattended automation. (AWC, RPS, LPS).
Product Parameters
| model | SMX2100/SMX2100S/SMX2100ST | SMX2600/SMX2600S/SMX2600ST | SMX3100/SMX3100S/SMX3100ST | SMX5100L/SMX5100LS |
| volume | ||||
| Standard chuck size | 8 inch | 10 inch | 12 inch | 15 inch |
| Maximum turning diameter | 600mm | 660mm | 660mm | 830mm |
| Maximum turning length | 1040/1540mm | 1540mm | 1540mm | 3050mm |
| Left main axis | ||||
| Maximum sub-spindle speed | 5000r/min | 4000r/min | 3000r/min | 2400r/min |
| Maximum spindle power | 22kW | 30kW | 30kW | 37kW |
| Maximum spindle torque | 467N.m | 724N.m | 1203N.m | 1643N.m |
| Right spindle models S/ST | ||||
| Maximum sub-spindle speed | 5000r/min | 4000r/min | 4000r/min | 2400r/min |
| Maximum spindle power | 22kW | 30kW | 30kW | 37kW |
| Maximum turning length | 467N.m | 724N.m | 724N.m | 1643N.m |
| Overall dimensions | ||||
| Length | 4845mm | 5700mm | 5700mm | 9222mm |
| Height | 2777mm | 2761mm | 2761mm | 3346mm |
| Width | 2770mm | 3011mm | 3011mm | 3597mm |
| Weight | 14900kg | 15800kg | 16700kg | 32200kg |
